Inputs: Pitch CV Wave CV Bank CV

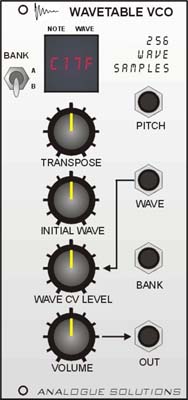

Outputs: Audio Power: +/-12V, +5V GND VCO-WT Wavetable VCO Indicators: Pitch/Wave Display Size: 12HP
Switches: Bank Select Controls: Transpose Initial Wave Wave CV Level Volume Wavetable: 256 waves samples (256bytes x 8 bit), 64K total memory
