Module	Description	Controls & Ins/Outs
	TC88 Tom/Conga Module The TC88 is an accurate replica of the TR808 Tom and Conga sounds. The module is entirely discrete analogue circuitry, based as closely as possible on the original. As the tom and conga sounds use common circuitry, they can share circuitry, and either sound is selected by a switch. This allows a choice 2 2 types of sound in one module. The Tune control has been given a wide ranging tune control so high, mid, low tom and conga sounds, and even kick drum sounds can be created.	Inputs: Trigger socket 5-12V Accent socket 0-12V Outputs: 3.5mm audio out 6.35mm audio out Power: +/-12V Controls: Tune, Tom Noise, TM/CG select switch, Level Indicators: Trigger LED Size: 10HP

Use

The trigger input has a range of about 5 to 12V. A trigger pulse of around 1mS is recommended, although the gate output of a synth can be used. A larger trigger pulse will increase the level of the sound (accent the notes). When the accent socket is used, the trigger input socket only triggers the sound and the level of the sound is controlled by the voltage of the CV at the accent socket. The accent voltage can be from another trigger pulse generator, or from an LFO or Envelope. When using for example an LFO, you can have the level changing with the LFO sweep.

The trigger LED will light each time a trigger pulse is received.

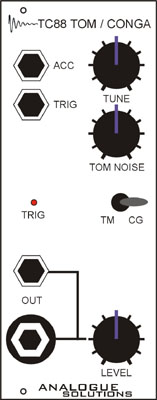

Controls

Tune Tunes the sound up or down

Tom Noise Controls the level of noise in the tom sound.

No noise is present in the conga sound, so this control affects the tom noise only.

Switch This selects either the tom (TM) or the conga (CG) sound.

Level Sets output level
