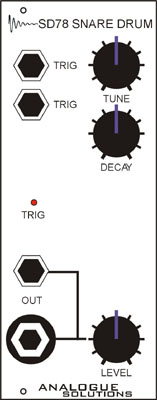

Module Description Controls & Ins/Outs

The SD78 is an accurate replica of the CR78 snare drum sound. The module is entirely discrete analogue circuitry, based as closely as possible on the original.

Inputs:
Trigger socket 5-12V x2

Outputs:
3.5mm audio out
6.35mm audio out

Power:
+/-12V

Controls:
Tune, Snappy, Level

Indicators:
Trigger LED

Size:
10HP

Use

The trigger input has a range of about 5 to 12V. A trigger pulse of around 1mS is recommended, although the gate output of a synth can be used.

The trigger LED will light each time a trigger pulse is received.

Controls

Tune Changes the tuning of the snare sound.

Snappy Sets the noise level.

Level Sets output level
