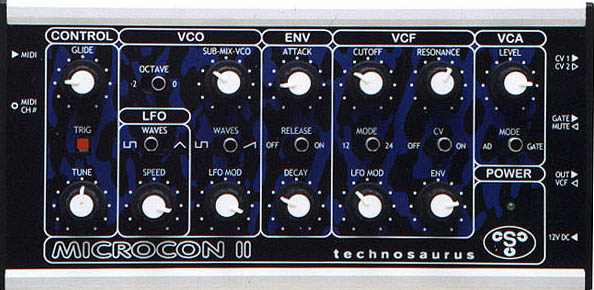

The MICROCON II

Main features:

• VCO with square or sawtooth wave
• LFO with square or triangle wave
• SUB-oscillator
• AD or ADR-envelope generator with manual trigg button
• 12 or 24 dB/Octave VCF with resonance
• VCA with AD or Gate control
• Adjustable glide
• CV/Gate input (Roland style)
• Filter CV and audio inputs. Internal sound source can be switched off.
• CV/Gate outputs to control/slave a MICROCON or any other CV/Gate instrument
• 1 additional filter CV output
• Internal VCO can be muted
• Very compact VHS video-tape size : Looks small and sounds BIG
• Dimension 20x10x5 cm

MIDI controlled parameters:

• Note number (C0....C7)
• Note ON / OFF, last priority
• MIDI channel selector (1...16)
• Accent ON / OFF depending on velocity
• Pitchbending via modulation wheel
• Filter cutoff frequency (internal VCF and external filter CV output)
• Glide ON / OFF
• All notes OFF when pressing more than 10 notes at the same time

12 V DC power required.
