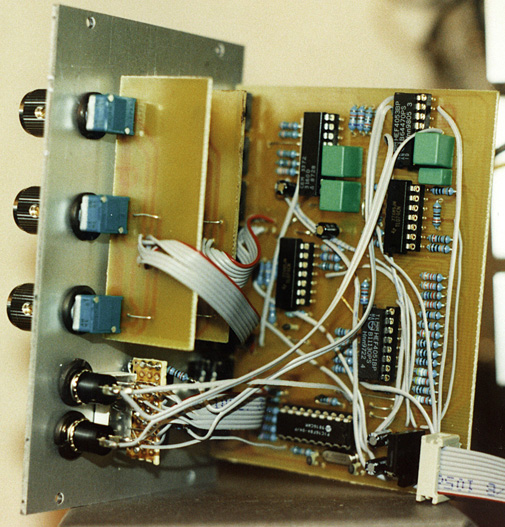

The ERWIK Matrix 12 filtermodule

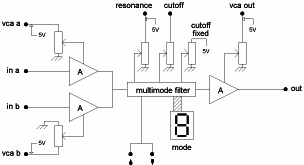

Block diagram

Features:

2 Audio inputs
2 VCA´s adjusting the input signals (manual or with CV)
Filter "cutoff" and "Q" controllable manual or with CV
1 VCA controlling the output signal (manual or with CV)
Filtertype can be selected manual or with trigger at input "UP" & "DOWN"
Very limited edition (12 )

Software:

Switching on your system you can choose between 4 different modes.

1. No button pressed - normal function.
2. Downbutton pressed - rotating filtertable.
3. Uppbutton pressed - faster triggering/swithing filtermode.
4. Both buttons pressed- rotating filtertable as well as faster triggering/swithing filtermode.

The display gives an indication of 'r' or 't' as well as both.

Filters:

1 pole Low
2 pole Low
3 pole Low
4 pole Low
1 pole High
2 pole High
3 pole High
2 pole Band
4 pole Band
2 pole Notch
3 pole Phase
2 pole High + 1 pole Low
3 pole High + 1 pole Low
2 pole Notch + 1 pole Low
3 pole Phase + 1 pole Low
