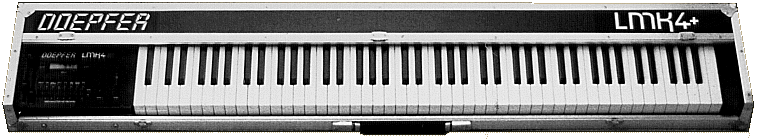

The LMK series of MIDI Masterkeyboards were established in the musician scene during the last few years. All keyboards are equipped with 88 keys hammer mechanics and black flight case. All of the LMK+ keyboards and the PK88 use the same 88 keys piano-type keyboard with real hammer mechanics. LMK4+ is a high level MIDI Masterkeyboard for all applications where extraordinary masterkeyboard functions are required.
 |
 |
Hammer mechanics keyboard as used in LMK2+, LMK4+ and PK88 |

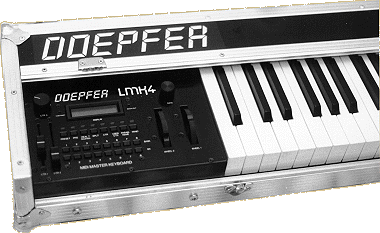

LMK4+ Control panel |
Specifications:
- 88 keys with real piano style action with hammer mechanics
- Built into a black flight-case with removable lid
- 2-line, 16-character LC display, adjustable backlight/contrast
- 24 function-buttons grouped in three rows of 8
- 8 LEDs (indicators for the top row of buttons)
- 2 Wheels (one spring-loaded), 2 Sliders, 1 Rotary knob
- 1 Alpha dial (endless rotary switch)
- Monophonic aftertouch (Channel-aftertouch)
- Velocity, max. 127 steps resolution (dependig upon selected velocity curve)
- External 1/4" input-jack for double-footswitch (e.g. our VFP2)
- 2 External 1/4" input-jacks for sweep pedals (e.g. our FP5)
- 2 x 2 MIDI-OUT (2 separate MIDI Outs with 2 sockets each)
- MIDI-IN, treated as a separate split zone of the LMK4 (e.g. for connecting another
keyboard or bass pedal)
- Wheels, sliders, aftertouch
sensor, rotary potentiometer, pedals and footswitches can be assigned to any
MIDI-Controller (including pitch and aftertouch)
- Sending of:
- - MIDI-program-change
- - MIDI-program-bank (controllers #0 and #32)
- - MIDI-START, STOP, CONTINUE, CLOCK
- - ALL NOTES OFF on all MIDI-channels (panic key)
- Footswitch-activated preset change
- preset change via incoming program change messages (disengageable)
- 32 velocity and 8 aftertouch response curves
- 8 user definable controllers (# 0...127 can be assigned)
- Adjustable velocity-response reduction factor for black keys
- Adjustable aftertouch effect if assigned to pitch (positive/negative)
- Proportional volume control of different zones with one controller
- 128 total presets. The following parameters can be adjusted or defined by the user in
each of the 128 presets:
- - Assignment of controllers (wheels, sliders, rotary knob, pedals, footswitches, etc.)
to MIDI-functions (Pitch bend, modulation, breath controller, aftertouch, volume,
panorama, portamento, sustain, soft pedal, sostenuto and 8 user-defined controllers)
- - Name of the preset (up to 8 characters)
- - Preset tempo (MIDI-clock)
- - Sending of Start, Stop or Continue at time of preset call-up
- - Preset-pointer (number of the
next preset selected via footswitch, loops possible)
- - definition of 8 overlapping keyboard-keyboard zones. The following features can be
defined/adjusted by the user in each of the 8 zones:
- - - use of the zone for internal keyboard or MIDI input
- - - UPPER/LOWER key
- - - MIDI-channel (1...16)
- - - assigned MIDI output (1, 2, 1+2 or none)
- - - any transposition in half-note increments/decrements
- - - Selection of one of 32 velocity and one of 8 aftertouch response curves
- - - Activity of each controller on/off
- - - Program-change, bank-number (Ctr.#0/32) and Volume sent when preset is called up
(disengageable)
- - - Piano mode on/off (i.e. sending of a note-on event at minimal key motion)
- DUMP-function (for single presets or the entire preset memory)
- Dimensions: 155 x 26 x 10 cm, Weight: 24 kg
- XLR connector for external power supply
- external 230V power supply included
- for other mains voltages the power supply must be purchased by the customer in his
country (7... 12V DC, 500mA required).
