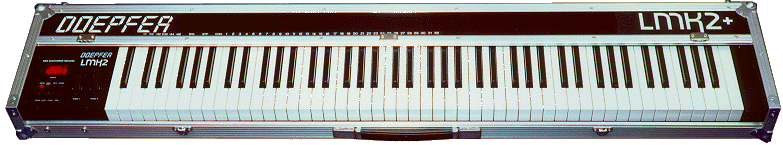

LMK2+ is a low cost MIDI masterkeyboard for all applications where extraordinary masterkeyboard functions are not required but a high quality keyboard with after-touch and two wheels are indispensible (if you need high level masterkeyboard functions see LMK4+).
- 88 keys with real piano style
action with hammer mechanics
- Built into a black flight-case with removable lid
- Monophonic aftertouch (Channel-aftertouch)
- Velocity, max. 127 steps resolution, dependig upon selected velocity curve
- 8 velocity response curves
- 2 Wheels: the spring-loaded one is used for pitch-bend, the other can be assigned to any
MIDI-Controller from #0...#31 (e.g. #1 = Modulation)
- External 1/4" input-jack for double-footswitch (Sustain and Sustenuto function,
e.g. our VFP2, see)
- External 1/4" input-jacks for sweep pedal (Volume function, e.g. our FP5, see)
- After-Touch, Wheels, ext. Footswitches and Pedal can be turned on/off in each zone
- 2 MIDI-OUT (parallel)
- 3-digit LED display
- 8 menu-buttons with LED indicators
- Sending of the following messages (in connection with keyboard keys)
- - MIDI-program-change
- - MIDI-program-bank (MIDI-controllers #0 and #32)
- - START, STOP, CONTINUE
- - ALL NOTES OFF on all MIDI-channels (panic key)
- Adjustable velocity reduction factor for black keys
- non volatile memory for the last keyboard configuration
- 4 overlapping keyboard-keyboard zones. The following features can be defined/adjusted by
the user in each of the 4 zones
- - UPPER/LOWER key
- - MIDI-channel (1...16)
- - any transposition in half-note increments/decrements
- - Selection of one of 8 velocity response curves
- - Activity of wheels, after-touch, foot-switches and foot controller on/off
- Controller number for wheel 2
- - Piano mode on/off (i.e. sending of a note-on event at minimal key motion)
- Dimensions: 145 x 26 x 10 cm, Weight: 23 kg
- XLR connector for external power supply
- 230V power supply included
- For other mains voltages the power supply must be purchased by the customer in his
country (7...12V DC, 500mA required), single XLR connector available instead of the 230V
power supply
