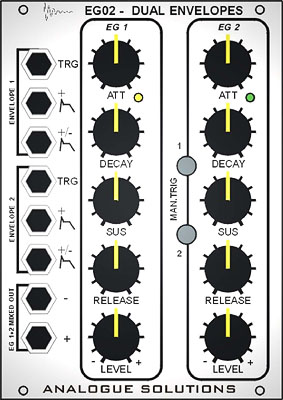

Module Description Controls & Ins/Outs

Under construction!
Inputs: Outputs:
Trig 1
Trig 2

Power:
+/- 12V

Size:
18HP

Indicators:
LED x2

 For each EG:
Positive full level
+ve/-ve variable.

-ve mixed output.
+ve mixed output
Controls: Other features:
For each EG:
Attack
Decay
Sustain
Release
Level (- to +)
Manual Trigger Button		 Each EG has a repeat function, activated when the Sustain set to 0, and a Gate signal active on the input.
