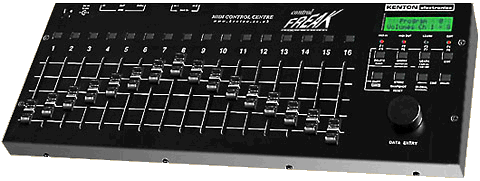

The Control Freak Studio Edition

The CONTROL FREAK STUDIO EDITION has been designed to allow live, real-time editing of MIDI parameters and has a vast range of applications. Boasting sixteen programmable, professional-quality sliders and sixteen programmable buttons, it may be used to edit synth & sound module parameters, adjust sequencer controllers or to create versatile lighting effects - all in REAL-TIME. Each slider or button may generate controller information, sysex, notes, program change, pitchbend or aftertouch, allowing instant control of up to 16 parameters. Editing is simple with the aid of a backlit LCD display and easy to use interface. Just imagine being able to directly control parameters such as VCF, pan, and pitchbend.

SPECIFICATIONS:

• Preset profiles
• 16 Fully programmable 60mm sliders
• 16 Fully programmable push-buttons
• 4 (x2 with shift key) programmable function keys Capable of sending any command or combination of commands. May also be used for instant program selection
• 4 edit keys
• Data entry knob
• Two line back-lit LCD display
• MIDI In/Out/Thru sockets
• Two external 1/4" input jacks which may be used with a foot pedal to replace any slider or button.
• External 1/4" input jacks may also be used for accurate CV / Gate to MIDI conversion!
• Intuitive, easy to use editing and user interface (with text editor)
• Supplied pre-programmed with profiles for popular synthesisers
• On-board library with a capacity for over 5000 individual profiles
• Advanced learn mode allows the user to match the unit to any synth
• Future library updates will be available for direct download from this website (Flash upgradable)
• 64 User memory locations each capable of storing assignments for every slider and button. (ie. 1024 virtual sliders and 1024 virtual buttons!)
• Sliders and buttons may be individually named for every assignment in every memory location
• Sliders and buttons can take a parameter from another slider
  (eg. If one button is set to send a note on message, it can take its velocity from a slider position)
• Buttons may be operated in three modes:

  momentary - send command when pressed
  toggle - toggle between two commands with subsequent presses
  on/off - send one command when pressed and another when released

• Sliders and buttons can send virtually any MIDI message in real time including multiple messages from the same slider/button
• User selectable global MIDI channel feature which may, if required, override individual program settings
• Built-in MIDI clock generator
• Comprehensive MIDI analyser mode for identifying problems
• Supplied with power adaptor (UK only)
• Dimensions approx 403 x 160 x 55mm
