Black Coffee System


The black coffee system incorporates everything you would expect to find in a small monosynth and a whole lot more. Considering this is probably the smallest monosynth in the world you will be please to see very little has been omitted. Through the clever use of routing through 12 switches and 12 pots, an extreme wide variety of sounds can be produced.

Unlike many other analogue minisynths, ours includes MIDI. MIDI allows you to play the black coffee from a MIDI keyboard or sequencer. MIDI channel can be selected and you get control of pitch, gate (note on/off), filter cut-off control (via MIDI controller 1/mod wheel), TB303 style `Slide' on/off (activated by overlapping notes) and Accent on/off (a velocity of over 64 will briefly increase the filter cut-off).

There are three parts to this system: the actual black coffee module, the case, and the MIDI to CV converter (MCV). All 3 parts together are called the black coffee system. Parts can be bought separately to allow choice of units you need for your requirement.

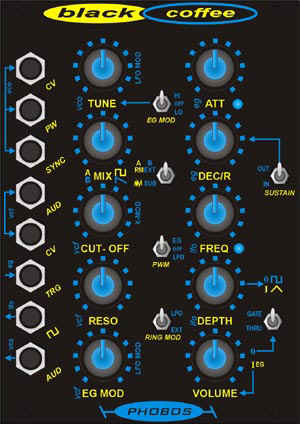

The black coffee module will fit into a Concussor, Integrator and A100 modular system rack so can be integrated and used with a modular synth system. By switching the VCA to `THRU' the unit can then be used as a versatile analogue effects unit for guitarist and vocalists. With 12 sockets, 10 controls & 12 switches you won't be short on creativity. Black coffee big pic

Note: certain features are only available if bought as a complete system with case and MIDI.

note: certain features are only available if bought as a complete system with case and MIDI.

Specifications

Synthesiser Features

VCO (Saw/Square)
LFO (Square/Triangle)
VCF 24db/oct (4pole) Moog Ladder Style LPF
EG (A, switchable Sustain, D/R)
VCA
White Noise
Ring Modulator
Slew generator (activated via MIDI only)

Sockets (front panel) - all 3.5mm

VCO
Pitch CV In
PW CV In
Sync In

VCF
Audio Input
Cut Off CV In

EG
Trigger In

LFO
Square Wave Out

VCA
Audio Out

Sockets (rear panel) - all 6.35mm except * which is 3.5mm. The following features are only available with the AS0018 case.

Audio In (duplicate of front panel socket)
Audio Out (duplicate of front panel socket)
Pedal In - plug the correct type of CV control Pedal
Pedal CV Out* - use an optional CV pedal to produce a CV





Front panel sockets:  3.5mm jacks Rear panel sockets:  6.35mm jacks MIDI Spec (case option)
Pitch CV in Audio in to filter MIDI In
PW CV in Audio out MIDI Thru
Osc Sync in CV pedal in Pitch CV
Audio in to filter Pedal CV out (3.5mm) Gate
EG trigger in Slide on/off
LFO square out Accent on/off (to filter)
Audio out Filter CV (7bit, mod wheel)
VCF Cut Off In Trigger LED
MIDI channel switches
note: all CVs internally hardwired to black coffee.



Rotary Controls Built In Switch Other Switches
Tune LFO Mod on/off Pitch EG Sweep Hi/Lo/Off
Mix Level Source Select PWM LFO/EG/Off
Filter Cut Off LFO Mod on/off Ring Mod Source ext/LFO
Resonance   Filter Source Select
Filter EG Mod Level Cross Mod (from VCO) EG Sustain on/off
Attack   VCA Gate/EG Mod
Decay / Release
LFO Speed
LFO Mod Depth LFO waveforem sqr/tri
Volume Thru on/off
  Note; These switches are built into the Rotary pots directly to their left. They have a push/pull action.
