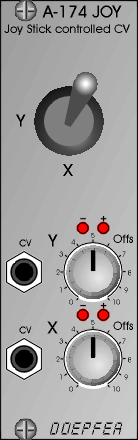

A-174 Joystick Controller

Module A-174 modules outputs 2 control voltages generated by a spring-loaded X/Y cross potentiometer (so-called joy stick). For each output the voltage offset (zero setting) can be adjusted. Each output is equipped with 2 LEDs for positive/negative display of the output voltages. If the spring is removed for one direction the joy stick is no longer spring-loaded for this direction (as the spring is destroyed when removed this cannot be re-established !). We use a high quality joy stick made by ALPS in the A-174.

For more detailed information please look at the English user's guide alternatively as html file (for browser view) or as pdf file (for printout).
