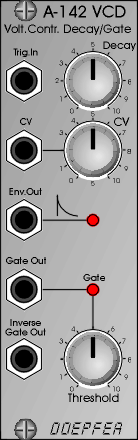

A-142 VC Decay / Gate

Module A-142 is a voltage controlled envelope generator. The only time parameter is decay. Decay may be adjustes manual and via voltage control input (with attenuator). The envelope output is displayed with LED control. Additionally from the envelope signal a Gate signal and an inverse Gate signal with adjustable threshold is derived. LED control for Gate output. Thus one obtains a voltage controlled Gate additionally or alternatively to the envelope signal with voltage controlled duration.
Typical applications: dynamic control of decay e.g. in combination with the Analog/Trigger Sequencer A-155, voltage controlled trigger delay functions (like A-162, but voltage controlled).

For more detailed information please look at the English user's guide alternatively as html file (for browser view) or as pdf file (for printout).
