A-135 Voltage Controlled Mixer

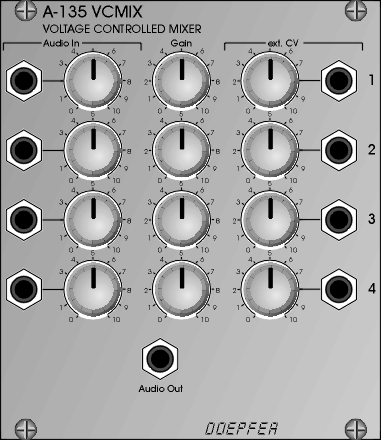

Module A-135 is a quad  voltage controlled mixer. It is made of 4 independent linear VCA's. The VCA outputs are mixed to a common output. For each VCA the following inputs and controls are available: audio input with attenuator, control voltage input with attenuator, gain (pre-amplification). The VCA's are realized with high-quality CEM VCA's (CEM3381).

Applications: voltage controlled mixing of up to 4 audio signals with separate control voltages (e.g. delivered by LFO's, ADSR's, Random, Shepard generator, MIDI-to-CV interface or other control voltage sources). In connection with the Morphing-Controller A-144 the soft fade-over of 4 audio signals with only one control voltage is possible.

Inputs: audio in (4x), CV in (4x)
Output: audio out
Controls: Audio In attenuator (4x), CV attenuator (4x), gain (4x)

For more detailed information please look at the English user's guide alternatively as html file (for browser view) or as pdf file (for printout).
