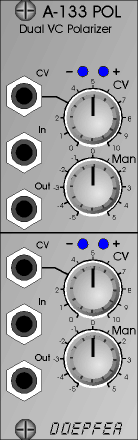

A-133 Dual VC Polarizer |
|
A-133 is a special dual voltage
controlled amplifier that enables both positive and negative amplifications. Negative
amplification means in this context that the signal is inverted. The main application of
the module is the processing of control voltages, e.g.
ADSR or LFO. The amplification range is about
-2.5....0....+2.5 (other amplification ranges for small additional charges, e.g.
-1...+1 or -5...+5). Amplification can be adjusted manually (Man control) and by an
external control voltage with attenuator (CV). The present amplification is displayed with
two LEDs: one for positive and one for negative amplifications (not a signal display but
amplification diplay, similar to A134. For more detailed information please look at the English user's manual A133_man.pdf |
|
Width: 8HP, Current: 30mA | |
