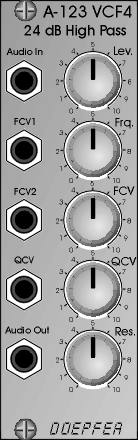

Module A-123 (VCF 4) is a voltage-controlled
high-pass filter, which filters out the lower parts of the sound spectrum, and lets higher
frequencies pass through.
The cut-off frequency determines the point at which filtering takes effect. You can
control this manually, or by voltage control (filter modulation, for instance by an LFO).
Two CV inputs are available.
The cut-off slope is -24 dB/octave. The circuitry uses a Curtis CEM 3320 chip.
Voltage controlled resonance: on the VCF 4, resonance can be controlled not just manually,
but by voltages as well, right up to self-oscillation. In this case, the filter behaves
like a sine wave oscillator.
For more detailed information please look at the English user's guide
alternatively as html file (for browser
view) or as pdf file (for printout).
|
