A-110 Standard VCO |
|
 |

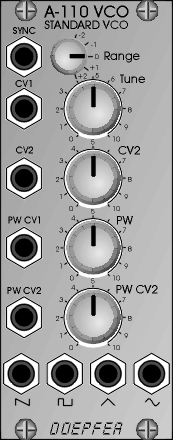

Module A-110 is a
voltage-controlled oscillator. This VCO's frequency range is about eight octaves. It can
produce four waveforms simultaneously: square, sawtooth, triangle, and sine wave. The
Frequency or pitch of the VCO is determined by the position of the octave (Range) switch
and tuning (Tune) knob, and by the voltage present at the CV inputs. Frequency modulation
(FM) of the VCO is therefore a possibility. Footage (the octave of the fundamental) is set
by the Range control, and Fine tuning controlled by the Tune knob. You can control the pulse width of the square wave either by hand, or by voltage control - Pulse Width Modulation or PWM. For more detailed information please look at the English A-110 user's guide alternatively as html file (for browser view) or as pdf file (for printout). In addition the A-110 service manual is available as an example for the A-100 service manual that is available at extra charges. |
| Width: 10HP, Current: 70mA | |
