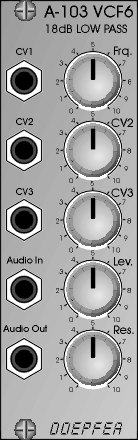

A-103 18dB Low Pass (VCF6) |
|
Module A-103 is a voltage controlled low pass filter with 18dB/octave slope. The circuit is based on a modified transistor ladder (Moog ladder) and is a reproduction of the legendary TB303 filter. As for the rest the A-103 is identical to the A-120 Moog low pass filter (same controls, inputs/outputs) only the filter sound is different. The English user's manual is available on our web site as pdf file: A103_man.pdf. |
|
Width: 8HP, Current: 30mA | |
